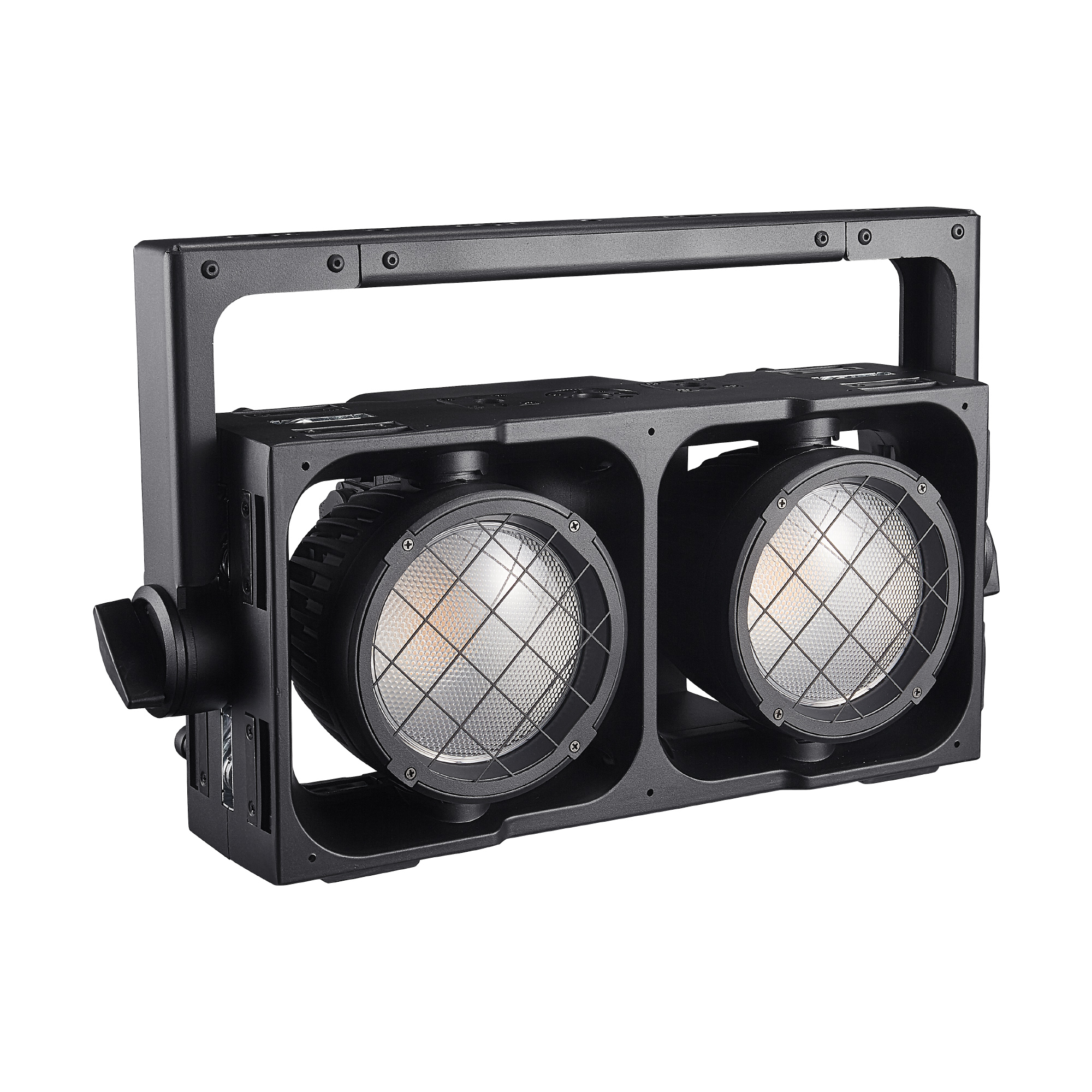

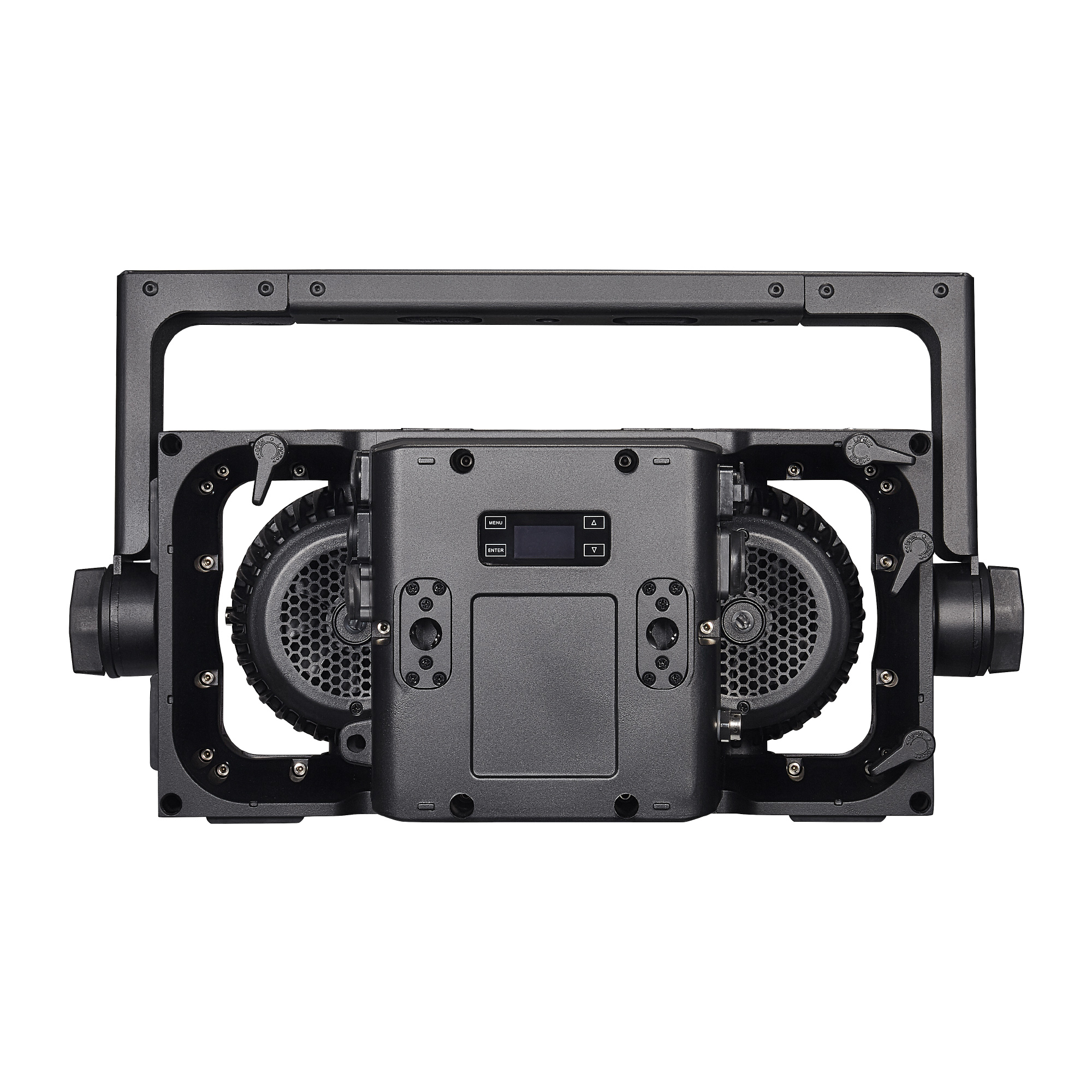

VSL-CB300-RGBWAWW IP
IP65 Waterproof, 2 eyes, 300w per eye, can be jointed together
Parameters
Details
Video
TECHNICAL PARAMETER:
Power supply
- Input voltage: AC 110V-240V 50/60Hz
- Rated power: 600 W optical
- Light source: 2X300W LED RGBAWW (1800K-10000K)
- Beam angle: 65°
- Light spot angle:97°
- Light source life: 20000 H
Color
- The uniform color mixing system can adjust the effect of tungsten filament lamp.
- Color rendering index: 95
Control and programming
- Control channel:
2CH DWE.
4CH DWE.
9CH DWE+
6CH STROBE.
6CH RGB.
10CH BASIC RGB.
14CH BASIC RGB.
13CH STANDARD RGB.
22CH STANDARD RGB.
24CH STANDARD RGB.
33CH STANDARD RGB.
10CH DIRECT.
12CH DIRECT.
17CH DIRECT.
28CH DIRECT.
41CH DIRECT.
- Protocol: Standard DMX512 Protocol, RDM Protocol
- Data connection: waterproof three-core XLR input/output
- Display: OLED display operation panel
Effect
- 8 types of built-in processes to choose from
- Fast electronic strobe 1-20 Hz
- Dimming modes: 5 kinds
Software
- Convenient and fast upgrade through DMX signal update software
- Silent waterproof fan, intelligent speed regulation
- Temperature intelligent protection to ensure the service life of LED
Lamp body structure and heat dissipation
- Aluminum alloy die-casting structure
- Fan heat dissipation
Other
- Protection level: IP65
- Working environment: -40℃ ~ 45℃
- Startup environment: -20℃ ~ 45℃
Size and weight
- Size: 502 × 288 × 195 mm - Net weight: 9 kgs
