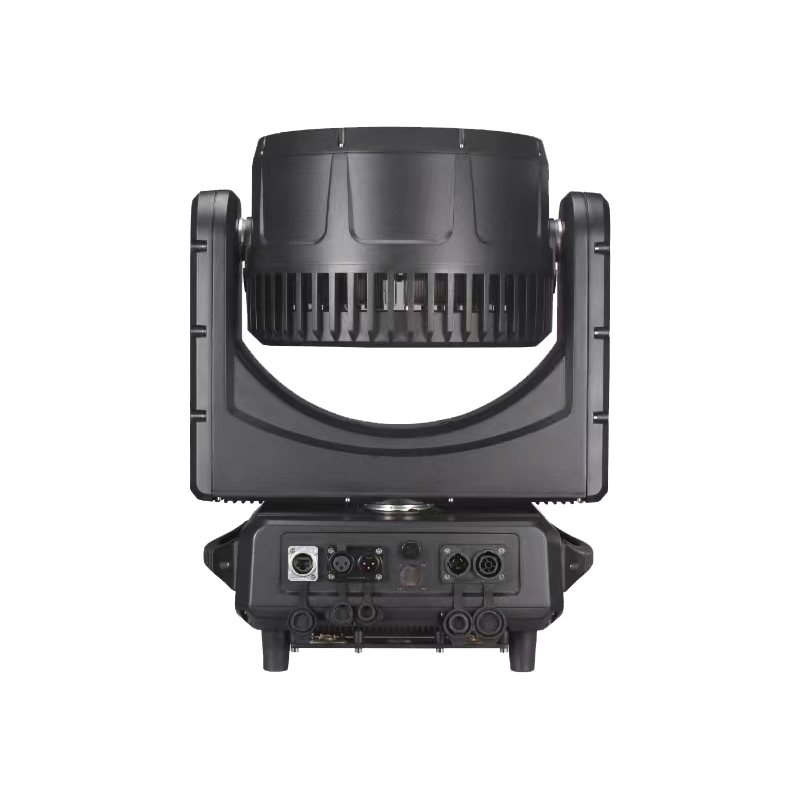

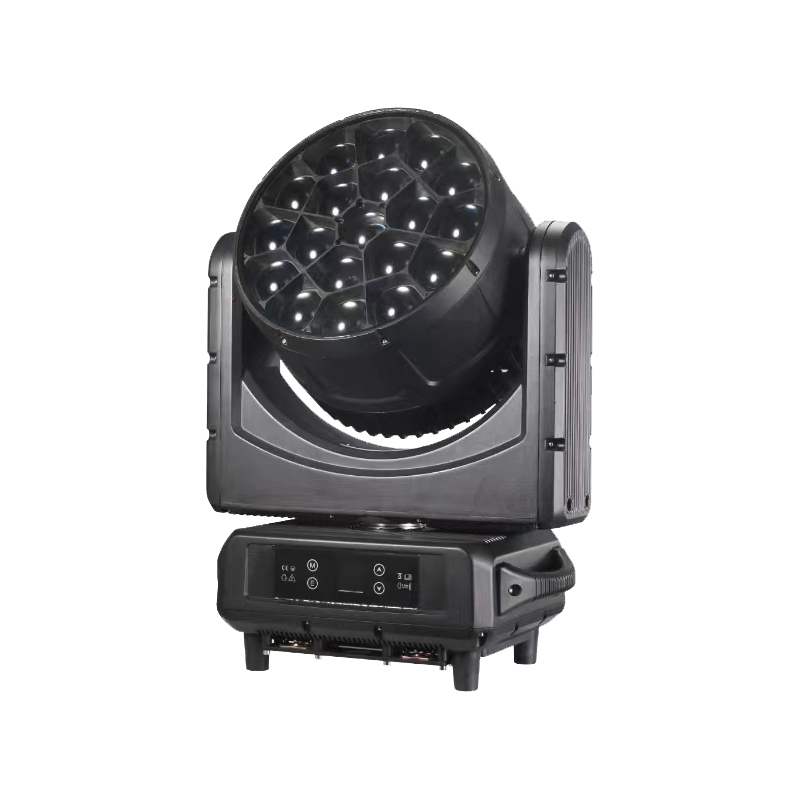

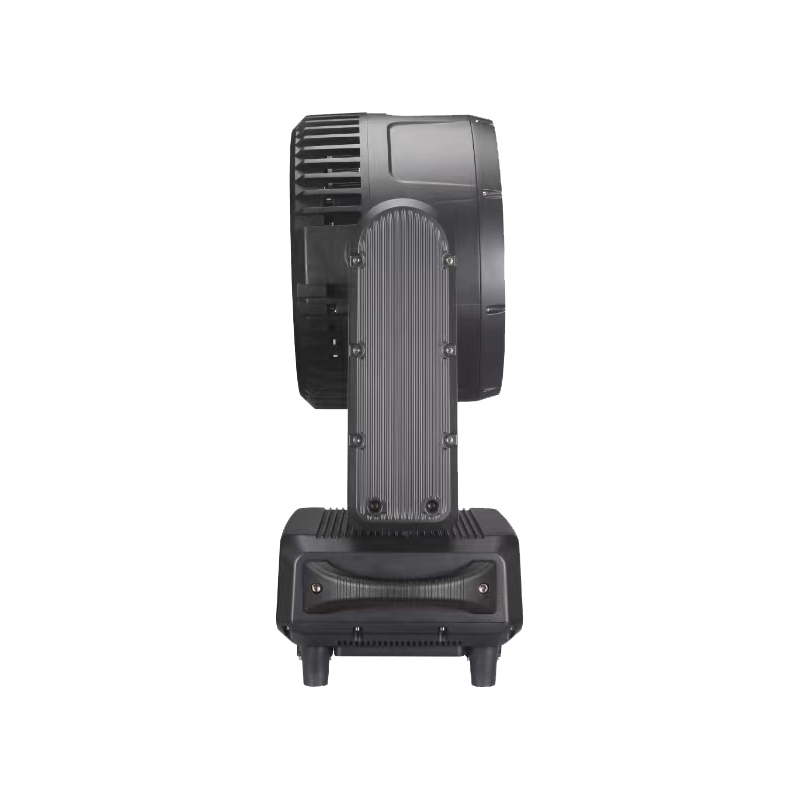

VSL-HZBE1940-4 IP
IP65 Waterproof Led Moving Head Light, 19pcs x 40W RGBW 4-in-1 Leds, Big Bee Eye
Parameters
Details
Video
Optical
Light source: 19 × 40W RGBW LED
Average lifespan: 50000h
Optical system: high-precision integrated structure lens, high transmittance quartz glass rod+PMMA lens
Zoom angle: adjustable from 7 ° to 45 °
Beam beam: Outstanding small angle beam effect
Color: RGBW color mixing system, uniform color mixing without flicker, fast color rainbow effect
Adjustable color temperature: 2500-10000K
Dynamic Effect
X : 540 ° Y : 220 °
Effect macros: static effect macro function and dynamic effect macro function
Strobe: 1K-25Hz
Dimming: Electronic dimming, four dimming curves, two dimming modes
Zoom system: linear electric zoom
Lens rotation: Optical lens with 360 ° infinite rotation, automatic error correction function for rotation, variable kaleidoscope, small waist and other effects
Single point control: The light source supports individual independent control and color transformation
Intelligent control: Equipment usage and lighting time, equipment temperature, and equipment humidity can be queried through the lighting menu
Channel data and software version failure information
Temperature control: Intelligent temperature control, capable of automatically adjusting the speed of the cooling fan and overheating protection, with three fan modes
Software upgrade: Upload upgrade files through the CX interface
Control
Control methods: DMX512, RDM, master-slave mode, USB, ARTNET protocol (according to requirements)
Channel mode: 18CH/21CH/35CH/78CH/94CH/111CH
Display screen: 1.77-inch LCD screen, bilingual menu in Chinese and English, available in Fahrenheit and Celsius degrees, waterproof intelligent touch key
Apperance
Shell material: Latest second-generation structural waterproof design, metal die-casting aluminum shell and fire-resistant engineering plastic
Net weight: 23.5kg
Gross weight: 26kg
Electric Specificate
Voltage: AC100V-240V/50-60Hz
Power: 820W
Power Connector: IP65 Powercon In & Out
Signal Connector: IP65 3 Pin or 5 Pin XLR
Working Environment
Ambient Temp: -20℃ -45℃
IPRate: IP65
Certificate
CE & RoHS
