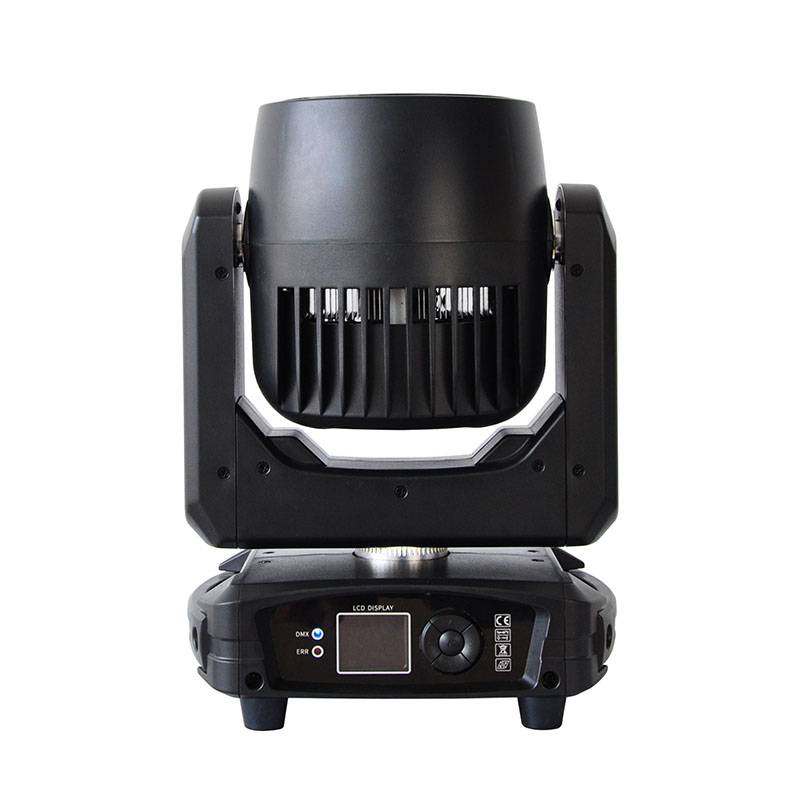

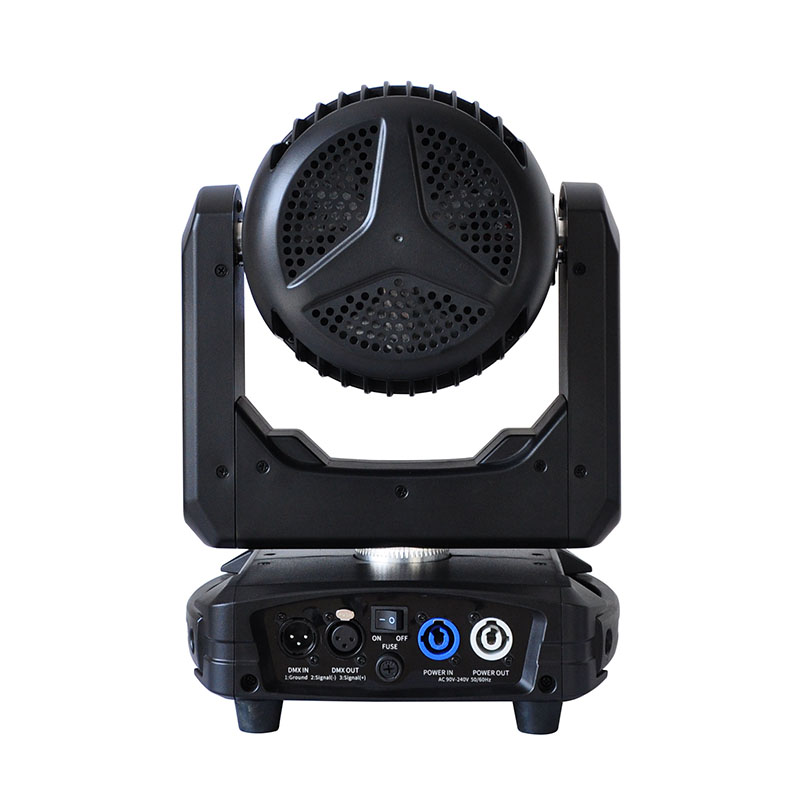

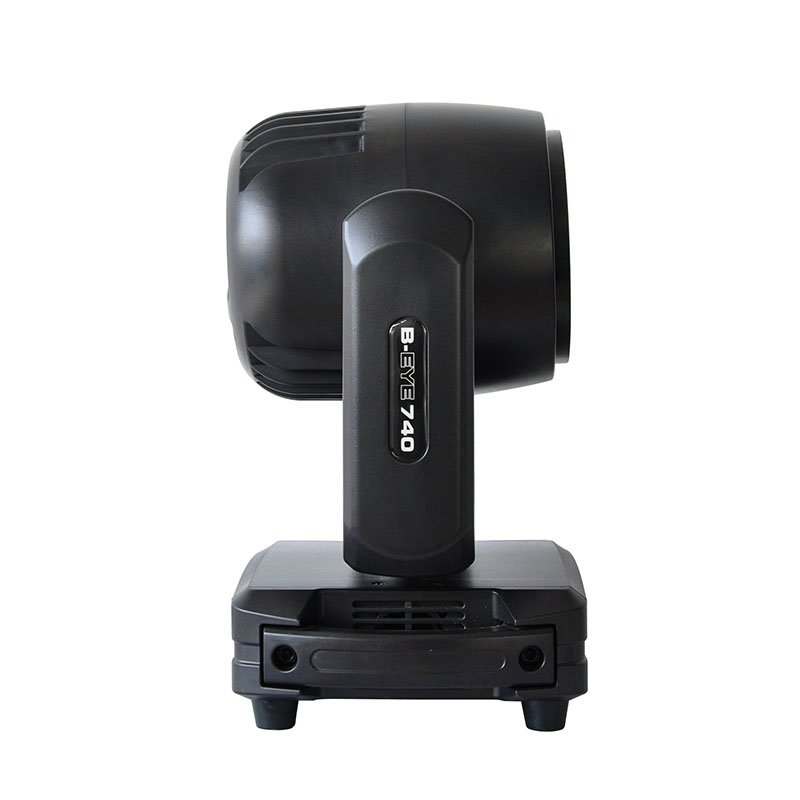

VSL-HZBE740-4
40w X 7pcs RGBW 4-IN-1 Leds, with zoom function and rotate lens wheel, each led can be pixel controlled
Parameters
Details
Video
Optical
Light Source: 7pcs x Osram40W RGBW 4-IN-1 LEDs
Led Life Span: 5000hrs
Each Led diode can be controlled independently
Zoom Angle: 4°-55°
Lens wheel is rotatable
Lumen: 3420 Lumen Output
Dynamic Effect
Pan: 540° (16bit)
Tilt: 260° (16bit)
Color: RGBW Color Mixing 16bit;
Linear CTO 2500K to 8000K
Preset Macro Colors
Dimmer: Electronic
Strobe: Electronic
Control
Control Mode: DMX512, Master/Slave, Sound Active, RDM
DMX Channel: 17CH
Display: LCD backlit b/w display
Appearance
Dimension: 266x207x376mm
Net Weight: 6.5kg
Casing: Aluminum and Stell structure with plastic covers
Color: Black
Electric Specifcate
Voltage: AC100-240V,50/60Hz
Max Power: 280W
Power Connector: Powercon In & Out
Signal Connector: 3Pin or 5Pin XLR
Working Environment
Ambient Temp: -20℃ -45℃
IP Rate: IP20
Certificate
CE & RoHS
