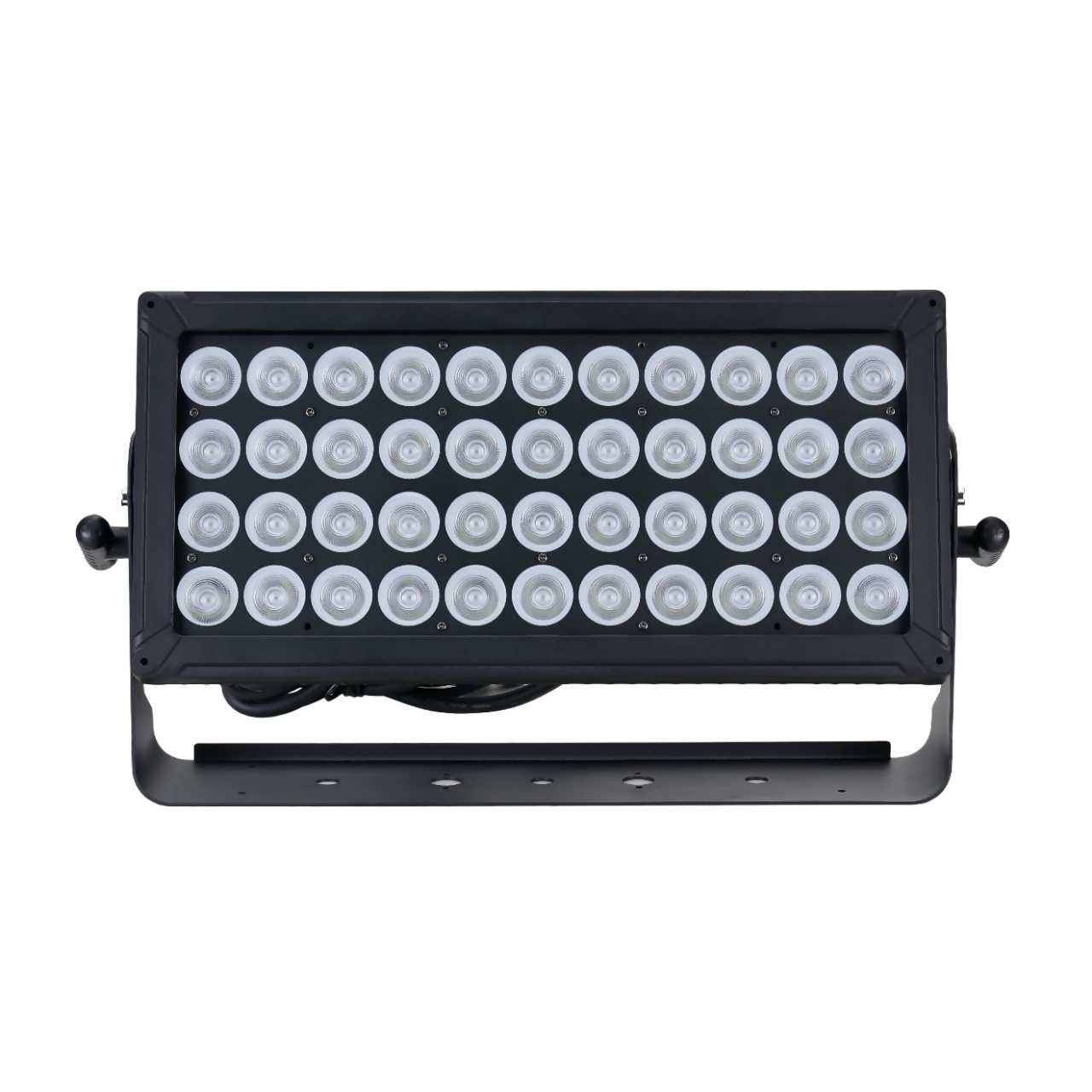

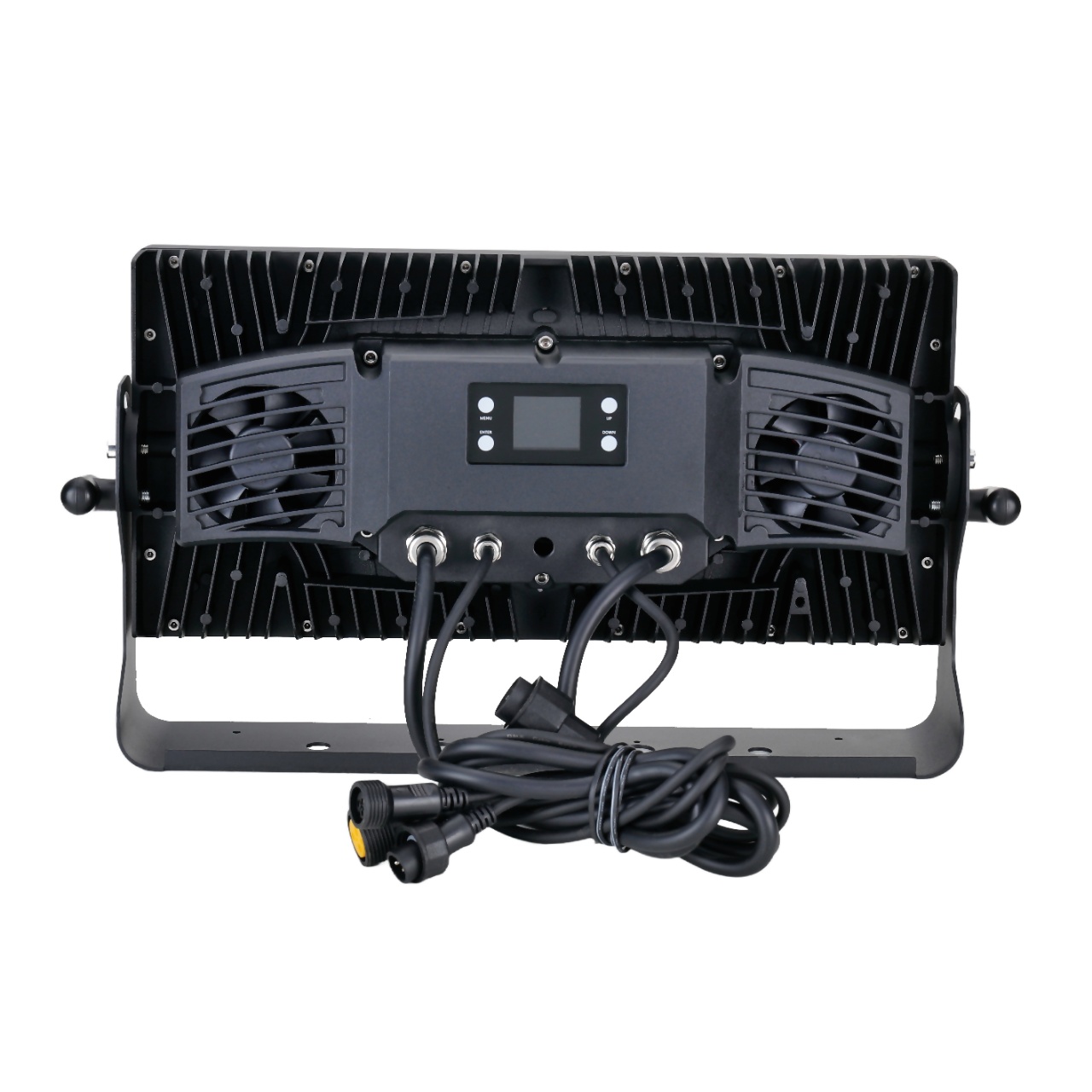

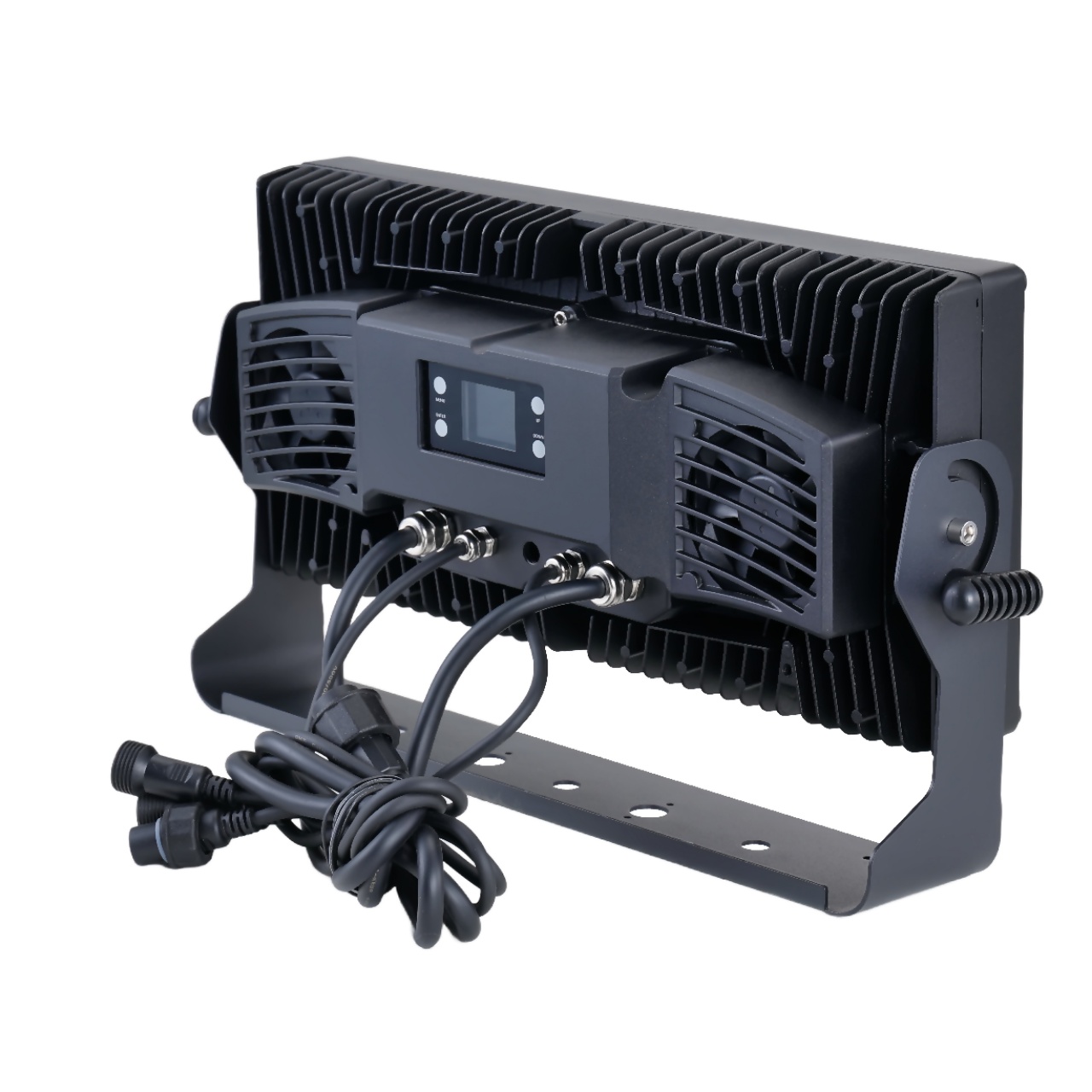

VSL-CC4415-4/6 IP
15W x 44pcs RGBW 4-IN-1 or RGBWAUV 6-IN-1 Leds, IP65 Waterproof, Slim Model
Parameters
Details
Video
Optical
Light Source: 44pcs x 15 Watt RGBW 4-IN-1 SMD9090 LEDs
44pcs x 15 Watt RGBWAUV 6-IN-1 SMD9090 LEDs
Lens Angle: 15° / 25° / 30° / 40° optional
Led Lifespan: 50000hrs
Dynamic Effect
Dimmer: 0-100% Linear Dimmer, 8 / 16bit
Strobe: 1-20t/s
Built-in Automated Program: Yes
Cooling: Forced Convection
Control
Control Mode: DMX512, Master/Slave, Sound Active, Auto-Run, RDM
DMX Channel: 4/8CH (RGBW 4-IN-1)
6/10CH (RGBWAUV 6-IN-1)
Appearance
Dimension: 509 x 117 x 264.2mm
Net Weight: 10.5kg
Casing: Die-Cast Aluminum
Color: Black
Electric Specifcate
Voltage: AC100-240V, 50/60Hz
Max Power: 800W
Power Connector: Powercon In & Out
Signal Connector: 3 Pin or 5 Pin Seetronic XLR
Working Environment
Ambient Temp: -20℃ - 45℃
IP Rate: IP65
Certificate
CE & RoHS
