VSL-CC6015-4 / 6 IP

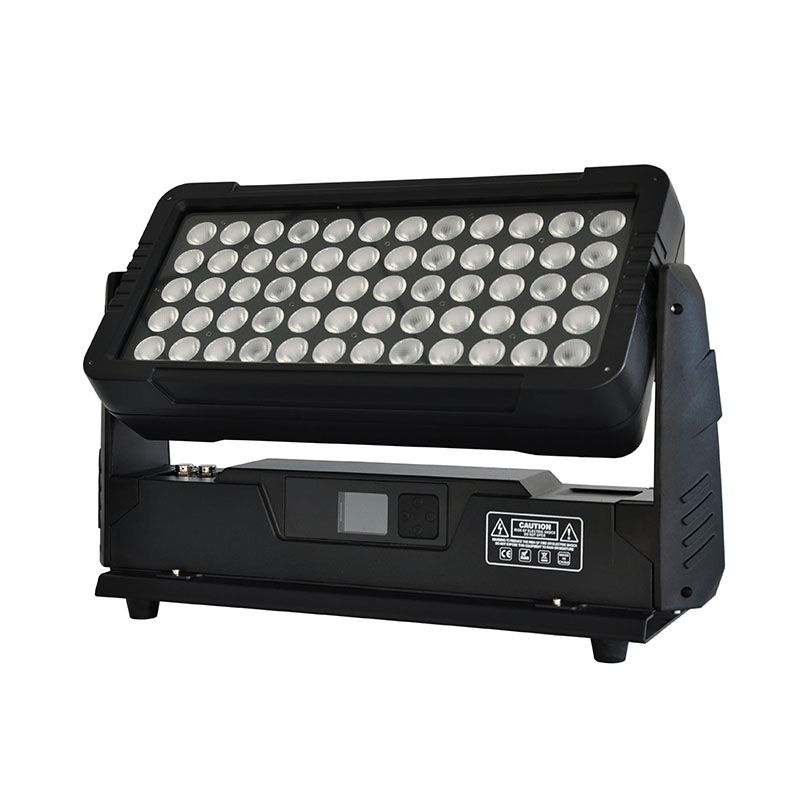

VSL-CC1560 (IP65) is an IP65 rated architecture wall washer
Light. It adapted high power 15-Watt Leds, higher brightnenss,
but casing is smaller than traditional architecture light.
Barndoor can help light adjusting the projective range easily.

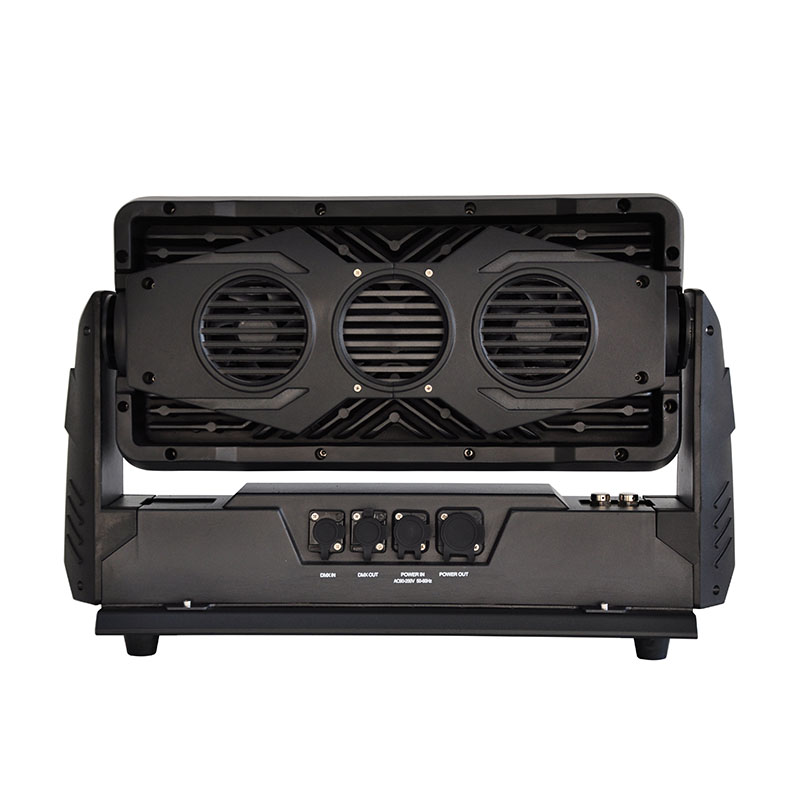

Installing 2pcs IP65 fan on the back of light head, which can operate
as light temperature, keep cooling and longer the fixture lifespan.
Light. It adapted high power 15-Watt Leds, higher brightnenss,
but casing is smaller than traditional architecture light.
Barndoor can help light adjusting the projective range easily.
Installing 2pcs IP65 fan on the back of light head, which can operate
as light temperature, keep cooling and longer the fixture lifespan.
Parameters
Details
Video
Optical
Light Source: 60pcs x 15 Watt RGBW 4-IN-1 SMD9090 LEDs
60pcs x 15 Watt RGBWAUV 6-IN-1 SMD9090 LEDs
Lens Angle: 25° / 40° optional
Led Lifespan: 50000hrs
Dynamic Effect
Tilt: 0-190° manual movement
Dimmer: 0-100% Linear Dimmer, 32bit
Strobe: 1-20t/s
Built-in Automated Program: Yes
Cooling: Forced Convection
Control
Control Mode: DMX512, Master/Slave, Sound Active, Auto-Run, RDM
DMX Channel: 4/8CH (RGBW 4-IN-1)
6/10CH (RGBWAUV 6-IN-1)
Appearance
Dimension: 560 x 150 x 380mm
Net Weight: 13.2kg (with barndoor)
Casing: Die-Cast Aluminum and Plastic Cover
Color: Black
Electric Specifcate
Voltage: AC100-240V, 50/60Hz
Max Power: 800W
Power Connector: Seetronic Powercon In & Out IP65
Signal Connector: 3 Pin or 5 Pin Seetronic XLR IP65
Working Environment
Ambient Temp: -20℃ - 45℃
IP Rate: IP65
Certificate
CE & RoHS
