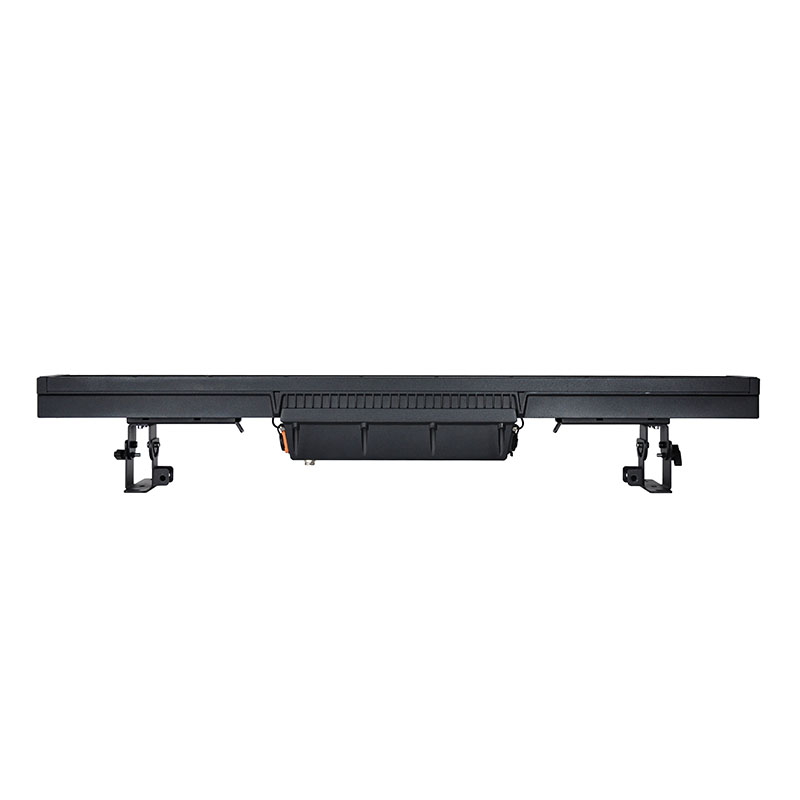

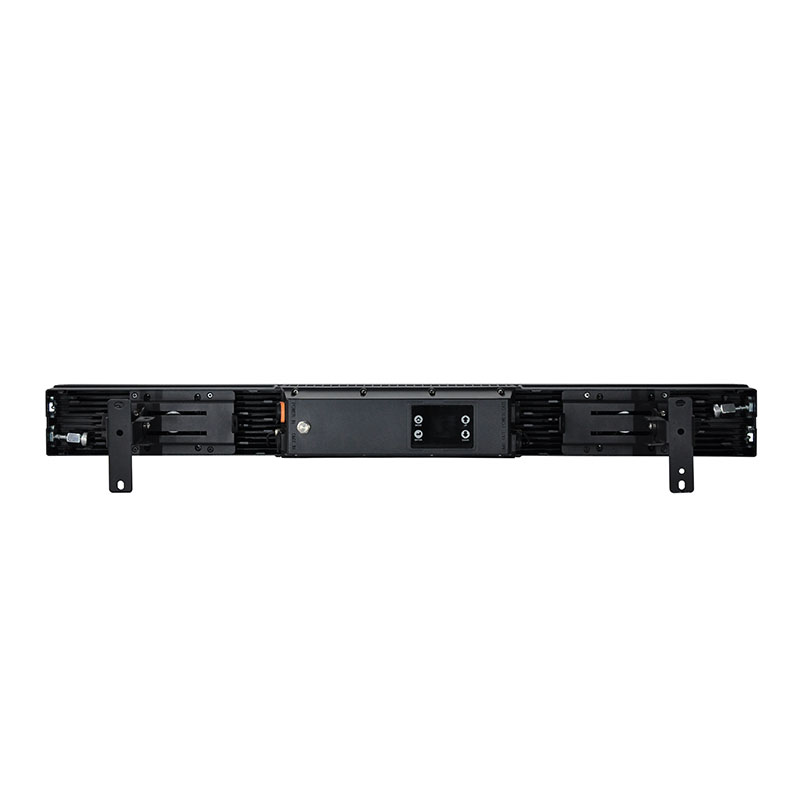

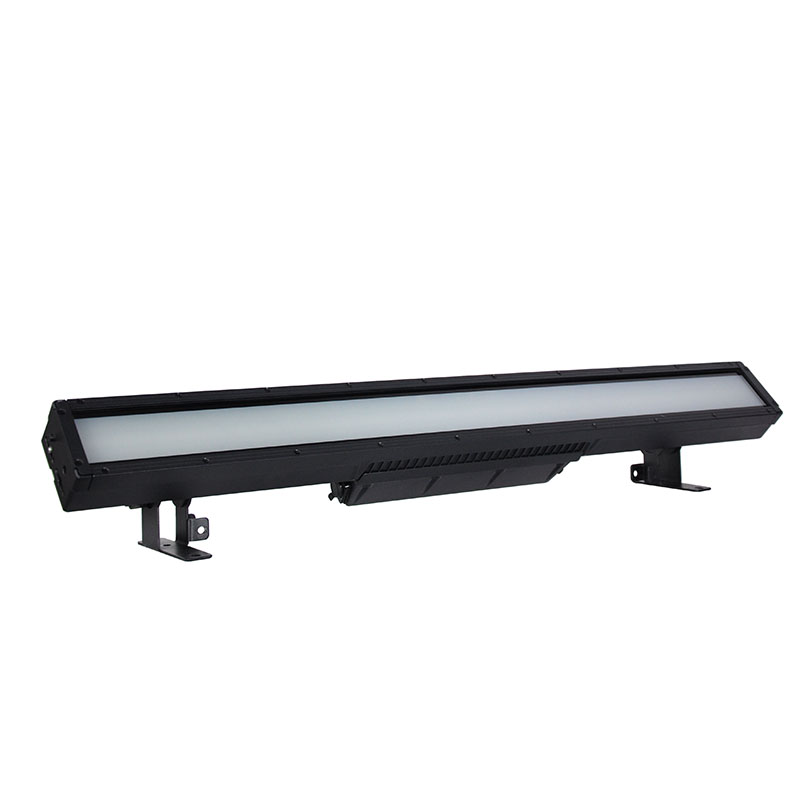

VSL-STRBAR784-4 IP (32+16)
IP65 Waterproof Grade, 784pcs RGB + CW SMD Leds, 48 Zones effect control, with Electronic Frost Glass
Parameters
Details
Video
Optical
Light Source: 672pcs x SMD5050 RGB 3-in-1
112pcs x SMD7575 White Leds
Led Lifespan: 60000hrs
Effect Zone: RGB: 32 zones + White 16 zones
Dynamic Effect
Dimmer: 0-100% Linear Dimmer, 32bit
Strobe: 1-20t/s
Built-in Program: 25 Built-in RGB Led Program Macro
9 Built-in Cool White Led Program Macro
Effect: 32+16 Zones Pixel Run + Wash + Strobe
Cooling: Forced Convection
Frost: Glass Electric Frost
Control
Control Mode: DMX512, Master/Slave, Sound Active,
Auto-Run, RDM
DMX Channel: 7/15/17/33/70/112/117CH
Display: 1.77inch TFT Screen with Touch Button
Appearance
Dimension: L1000 x W90 x H149mm
Net Weight: 7.6kg
Casing: Aluminum Alloy
Color: Black
Electric Specifcate
Voltage: AC100-240V, 50/60Hz
Max Power: 340W
Power Connector: IP65 Powercon Input & Output
Signal Connector: IP65 3 or 5 pin XLR Input & Output
Working Environment
Ambient Temp: -20℃ - 45℃
IP Rate: IP65
Certificate
CE & RoHS
