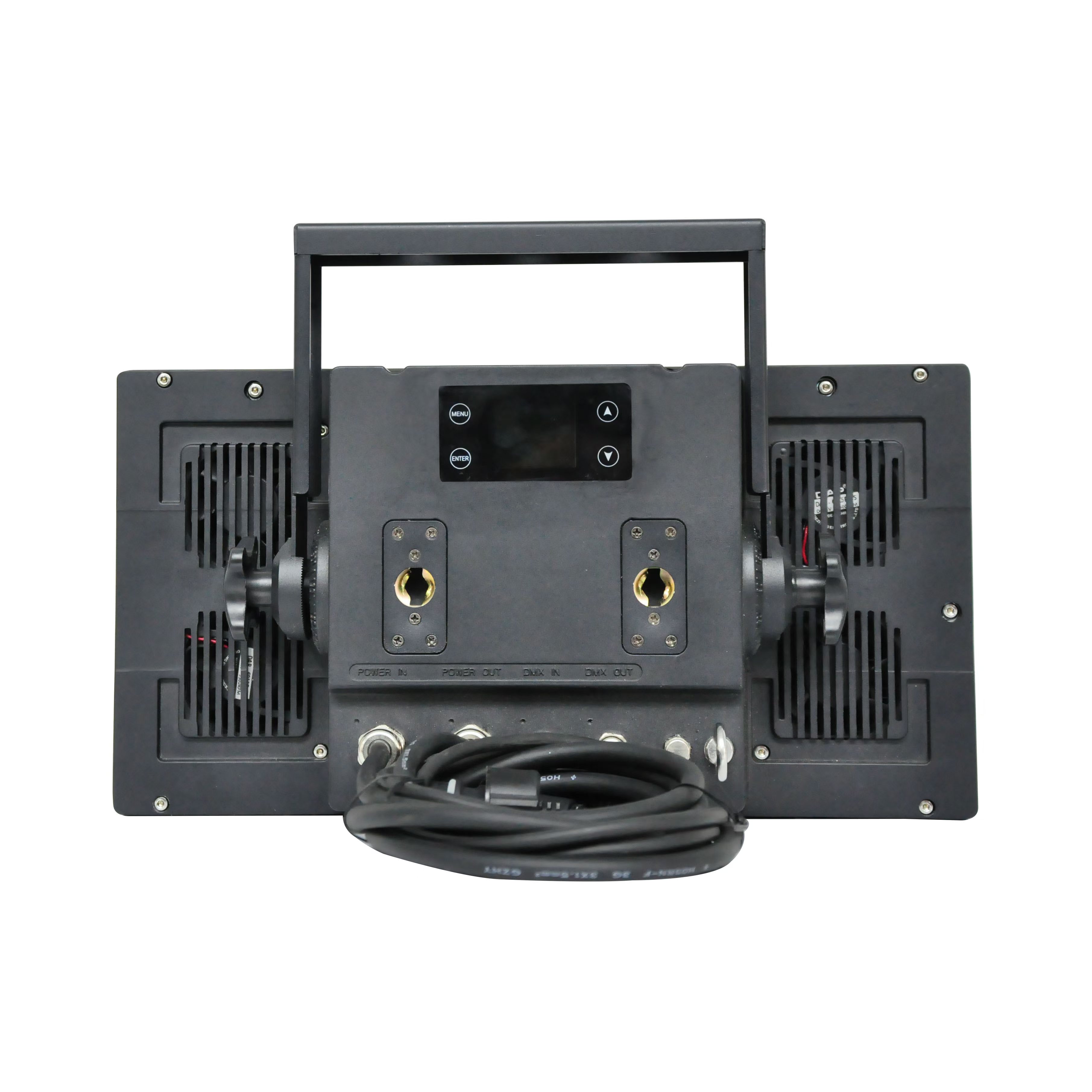

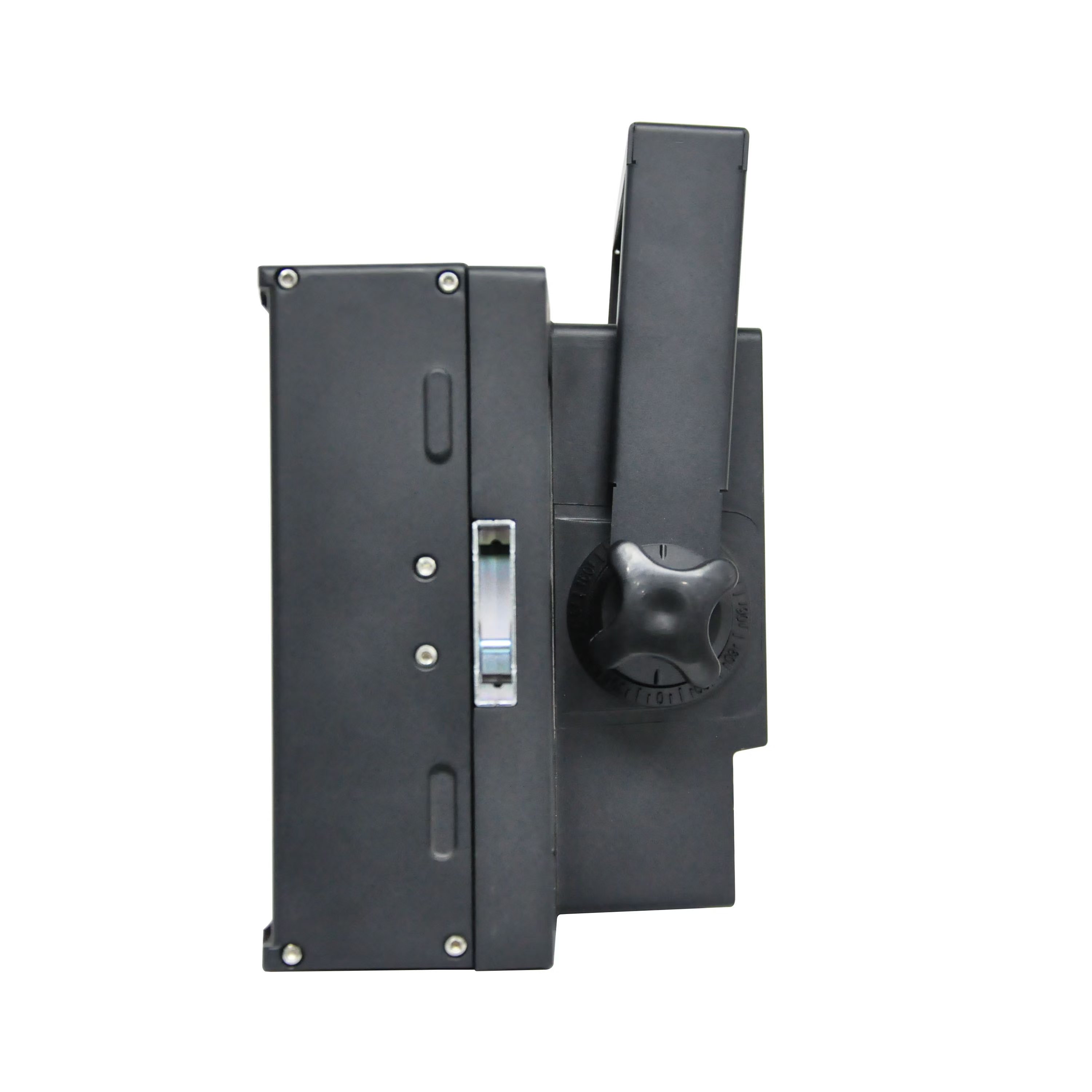

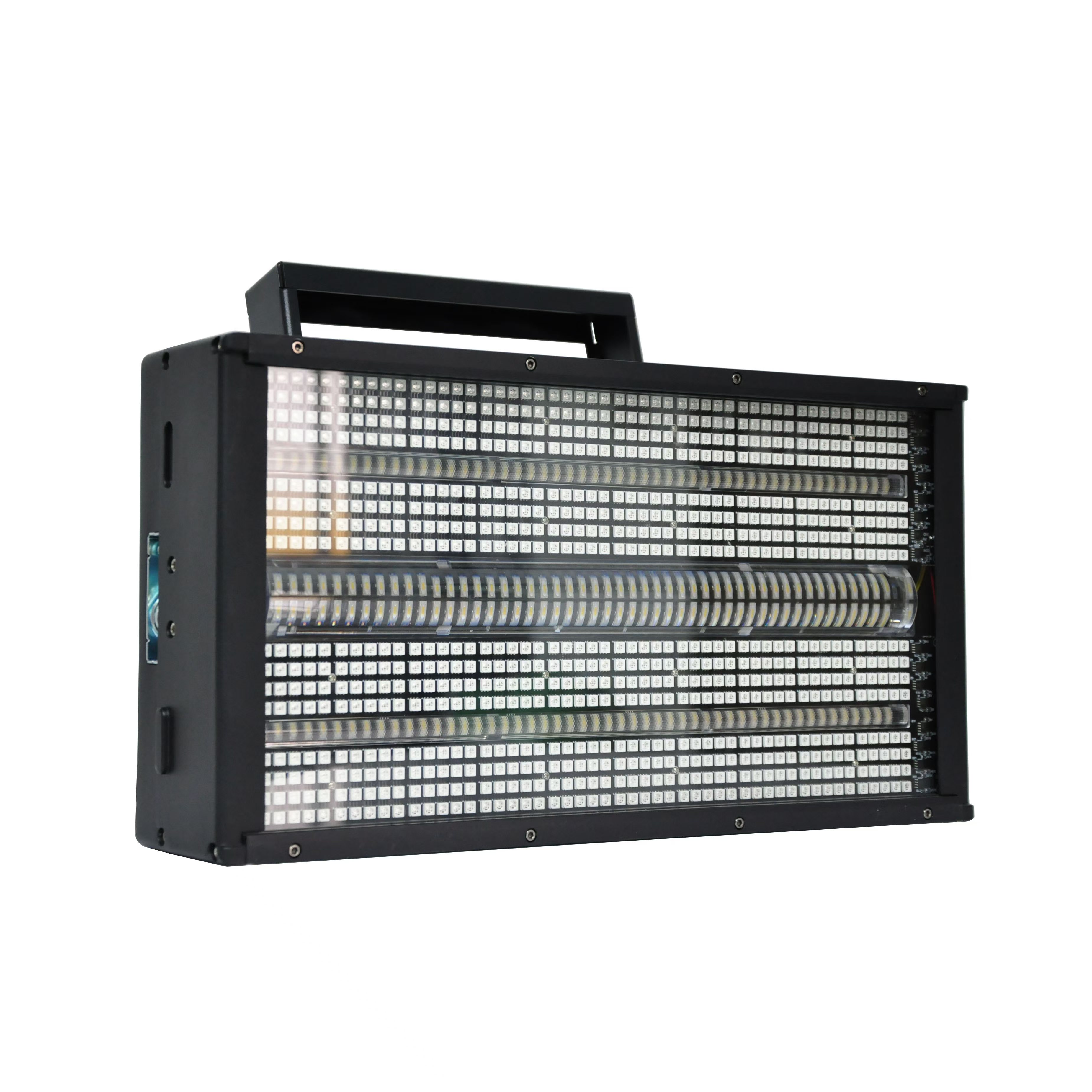

VSL-STR DIAMOND IP
IP65 Waterproof Grade, 1000pcs RGB + CW SMD Leds, 70 Zones Effect Control
Parameters
Details
Video
Optical
Light Source: 200pcs x 3W Cool White
+800pcs x 0.5W RGB 3-IN-1 Led Diode
Led Lifespan: 50000hrs
Effect Zone: RGB: 4 x 10 zones + White 3 x 10 zones
Beam Angle: 68°
Spot Angle: 114°
Effect
Strobe: 1-20t/s
Dimmer Mode: 5 modes
Dimmer Curve: 4 kinds
Color Mixing: RGB Color Mixing + Rainbow Effect
Cooling: Natural Cooling
Control
Control Mode: DMX512, Master/Slave, Sound Active,
Auto-Run
DMX Channel: 15/50/158CH
Display: Lcd Display
Appearance
Dimension: L408 x W274 x H162mm
Net Weight: 11.4kg
Casing: Die-Cast Aluminum
Color: Black
Electric Specifcate
Voltage: AC100-240V, 50/60Hz
Rated Power: 540W
Strobe Power: 1100W
Power Connector: Outdoor Powercon Input & Output
Signal Connector: Outdoor 3 or 5 pin XLR Input & Output
Working Environment
Working Ambient Temp: -40℃ - 45℃
Starting Ambient Temp: -20℃ - 45℃
IP Rate: IP65
Certificate
CE & RoHS
