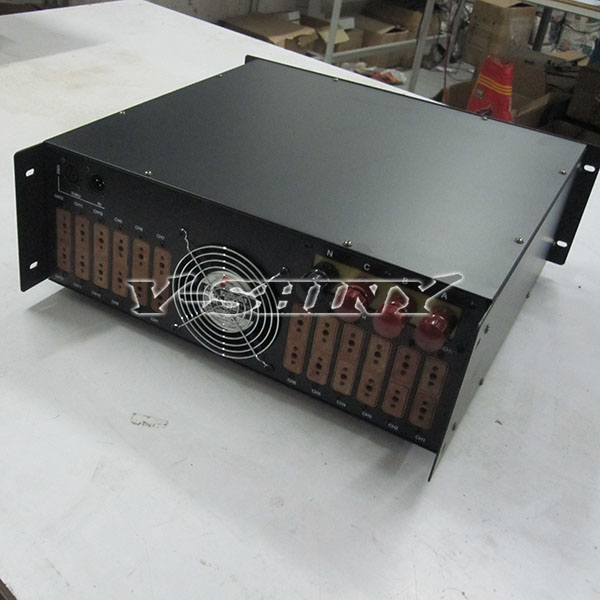

VSC-12CH DIMMER PACK
-
Parameters
Details
Video

Skill specifications:

It possess the stand alone function as well as the use with
DMX controllers for dimming. For stand- alone function, the
user can select any one of the 12 built-in programs with
adjustable speed. For DMX use, it can be connected 1-12CH
with the DMX address set from 001-512. Control curve can be
selectable from Switch to Linear. With the function of power
failure memory, manual, master/slave.
Technical Info.
* Power Input: AC 120V/60Hz 220V/50Hz
* 12 channel DMX digital dimmer pack
* Digital LCD display, DMX input
* Max. current: 20A per channel
* Microcomputer control
* Separate DMX addressing for each channel
* Built-in 12 chase programs, chase speed adjustable
* Phase correction activates linear dimming 0-100%
* Control curve selectable from switch to linear
* Electronic protection against over temperature and short circults
* Power failure memory
* With brackets for easier handling and using
* Dimension(mm): L482 x W381 x H174
* Weight: 20kg
